Purpose engineered armored vehicles for military,
law enforcement and executive protection missions.
MISSION REQUIREMENTS / CUSTOM BUILDS / PROTECTED MOBILITYDiscover Gladius ↓
01 / OUR MISSIONPROTECTION IN SUPPORT OF OPERATIONAL READINESS
Built on protection.
Defined by trust.
Gladius Middle East is a UAE based government contractor providing purpose built armored vehicles for military, law enforcement, and executive protection applications.
Our Mission: To engineer armored mobility that stands between our clients and the threats they face, combining certified ballistic protection, blast resistance, and mission specific systems into platforms trusted by military, law enforcement, and government operators across every theatre of operation.
Explore our capabilities ↗Who We Serve
Government & Defense
Vehicle programs shaped by public sector procurement requirements and defined operational specifications.
Security Organizations
Protected transport and specialist platforms for authorized security and law enforcement operations.
Program & Fleet Partners
Armored vehicle integration within larger contracted programs and multi platform fleet initiatives.
02 / VEHICLE PROGRAM CAPABILITIESREQUIREMENTS · BUILD · INTEGRATION
Armored vehicle
program delivery.
A coordinated approach to vehicle configuration,
mission integration and contractual acceptance.
Armored vehicle design & build
Develop purpose built vehicle configurations that bring together armoring, cabin layout, crew access and equipment accommodation within the agreed project scope.
Mission integration & delivery
Bring approved mission equipment and vehicle requirements together, with project documentation, inspection and acceptance criteria aligned to the government contract.
03 / PROTECTED MOBILITY SOLUTIONSPURPOSE BUILT PLATFORMS

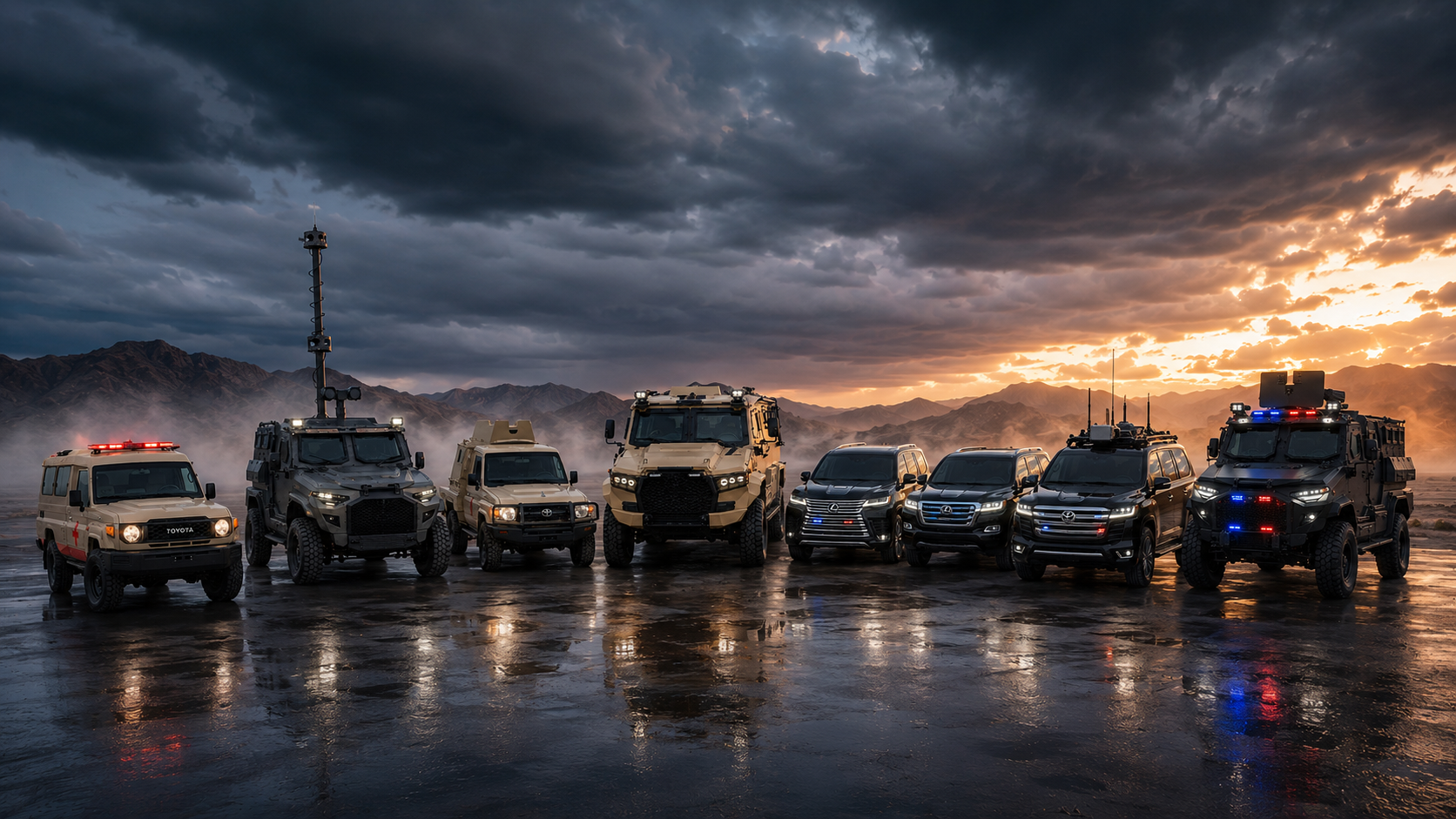

Eight platforms.
Mission defined protection.
Personnel carriers, electronic warfare and command vehicles,
VIP protection, tactical pickups and armored medical transport.
01 / ARMORED PERSONNEL CARRIER
Ford F550 APC
Protected personnel movement for tactical patrol, convoy protection and border security.
Explore vehicle ↗Vehicle overview ＋
- Engine
- 6.7 L V8 diesel
- Power
- 330 hp @ 2,600 rpm
- Torque
- 750 lb ft @ 2,000 rpm
- Transmission
- 10 speed Select Shift Automatic
- Power to weight ratio
- 42.31 hp/ton
- Fuel tank
- 151 L
- Drive system
- Selectable 4×4
- Steering
- Hydraulically assisted
- Front suspension
- Solid twin coil monobeam
- Rear suspension
- Solid axle with leaf springs
- Shock absorbers
- Hydraulic
- Axle ratio
- 4.88
- Wheels
- DBL 20 inch heavy duty alloy
- Tires
- 335/80 R20
- Run flat system
- Standard
- Central tire inflation system
- Optional
- Brakes
- Ventilated discs
- Seating
- 2+6, optional +2
- Doors
- 5
- Turret
- Optional; space for 3
- Overall length
- 6,584 mm
- Overall width
- 2,357 mm
- Overall height
- 2,512 mm
- Wheelbase
- 3,690 mm
- Track
- 2,022 mm
- Ground clearance
- 371 mm
- Curb weight
- 7,800 kg
- Payload capacity
- 1,500 kg
- Combat weight
- 9,300 kg
- Maximum speed
- 100 km/h
- Turning circle
- 12.95 m
- Range
- 645 km
- Gradeability
- 60%
- Side slope
- 30%
- Fording depth
- 0.8 m
- Approach angle
- 38°
- Departure angle
- 30°
- Ballistic protection options
- CEN B6 or STANAG II
- Blast protection
- 2A/2B compliant floor

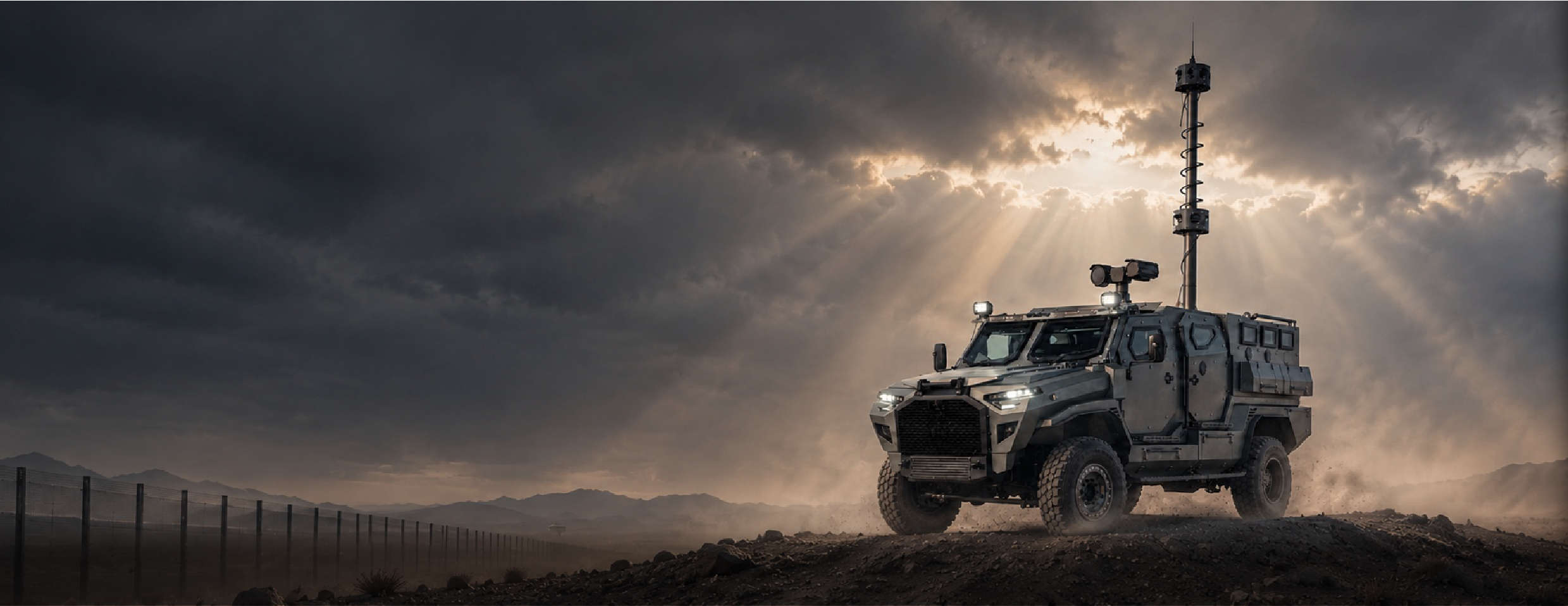

02 / ELECTRONIC WARFARE SUPPORT
F550 EW APC
An armored F550 platform configured for electronic warfare support and protected mission equipment transport.
Explore vehicle ↗Vehicle overview ＋
- Base vehicle
- Ford F550 Super Duty
- Engine
- Ford Power Stroke Turbo Diesel
- Horsepower
- 330 hp
- Transmission
- 10 Speed Automatic
- Passenger capacity
- Up to 8 personnel + equipment
- Ballistic protection
- CEN B6 (EN 1063)
- EW system
- AD Guard Hybrid Jammer
- Frequency coverage
- 25 MHz to 6,000 MHz (6 modules)
- Max jammer output
- Up to 100W per module
- Power consumption
- Up to 1,800W @ 28V DC
- Remote control
- Ruggedized Wired RCU
- Certification
- MIL STD 810 Certified
03 / ARMORED PERSONNEL CARRIER

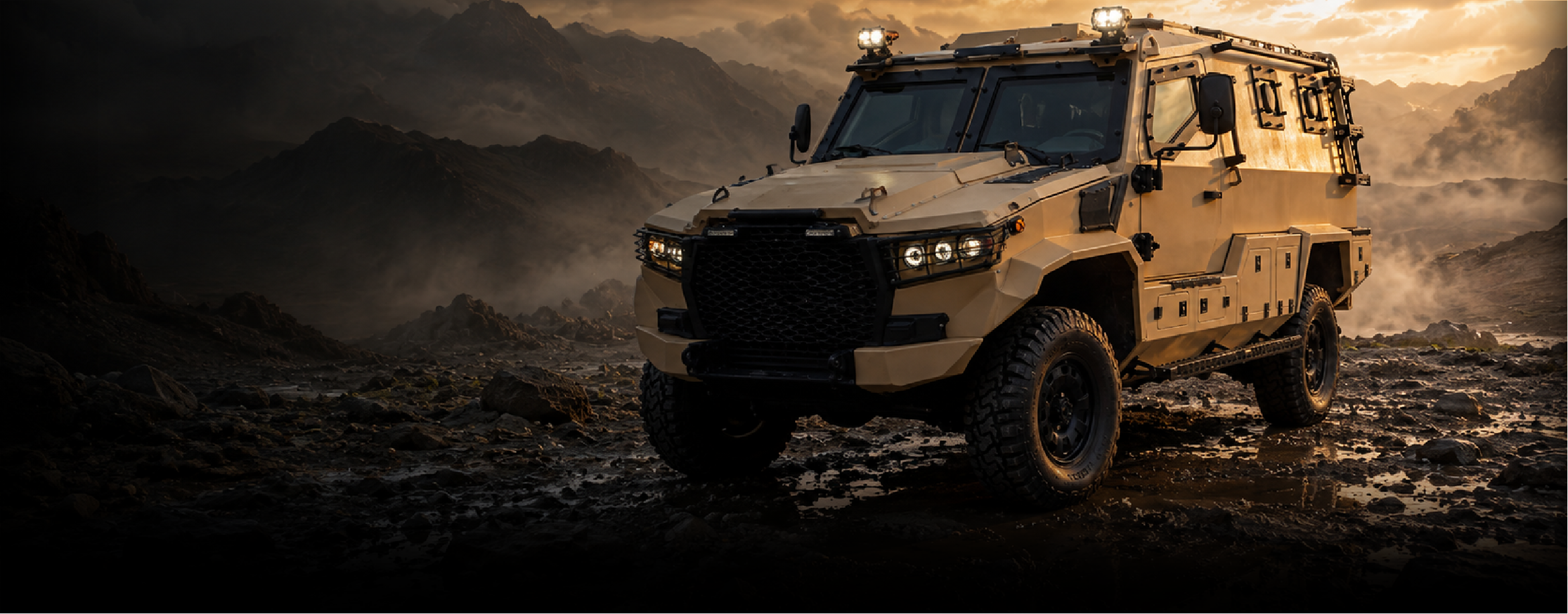

LT 79 APC
A Toyota Land Cruiser 79 based APC for troop transport, patrol and law enforcement requirements.
Explore vehicle ↗Vehicle overview ＋
- Platform
- Toyota Land Cruiser 79 chassis
- Engine
- 2.8 L four cylinder diesel
- Power
- 201 hp
- Torque
- 500 Nm
- Transmission
- 6 speed automatic
- Passenger capacity
- 8 personnel
- Maximum speed
- 100 km/h
- Range
- 500+ km
- Steering
- Hydraulically assisted recirculating ball
- Front brakes
- 6 piston disc brakes
- Rear brakes
- Drum
- Fuel tank
- 135+ L
- Curb weight
- 5,100 kg with standard equipment and protection
- Payload
- 1,000 kg
- Gradeability
- 60%
- Side slope
- 30%
- Fording depth
- 700 mm
- Ground clearance
- 290 mm
- Trench crossing
- 700 mm
- Overall length
- 5,452 mm
- Body length
- 5,231 mm
- Overall width
- 2,441 mm
- Body width
- 1,797 mm
- Rear width
- 2,100 mm
- Overall height
- 2,473 mm
- Ballistic protection
- CEN BR6
- Rifle protection
- 7.62×51 mm M80; 5.56×45 mm SS109; 5.56×45 mm M193
- Blast protection
- Hand grenades, unexploded artillery fragmenting submunitions and small anti personnel explosive devices
- Suspension
- Heavy duty suspension
- Cooling system
- Independent enhanced cooling
- Run flat system
- Military grade inserts
- Drive system
- 4WD

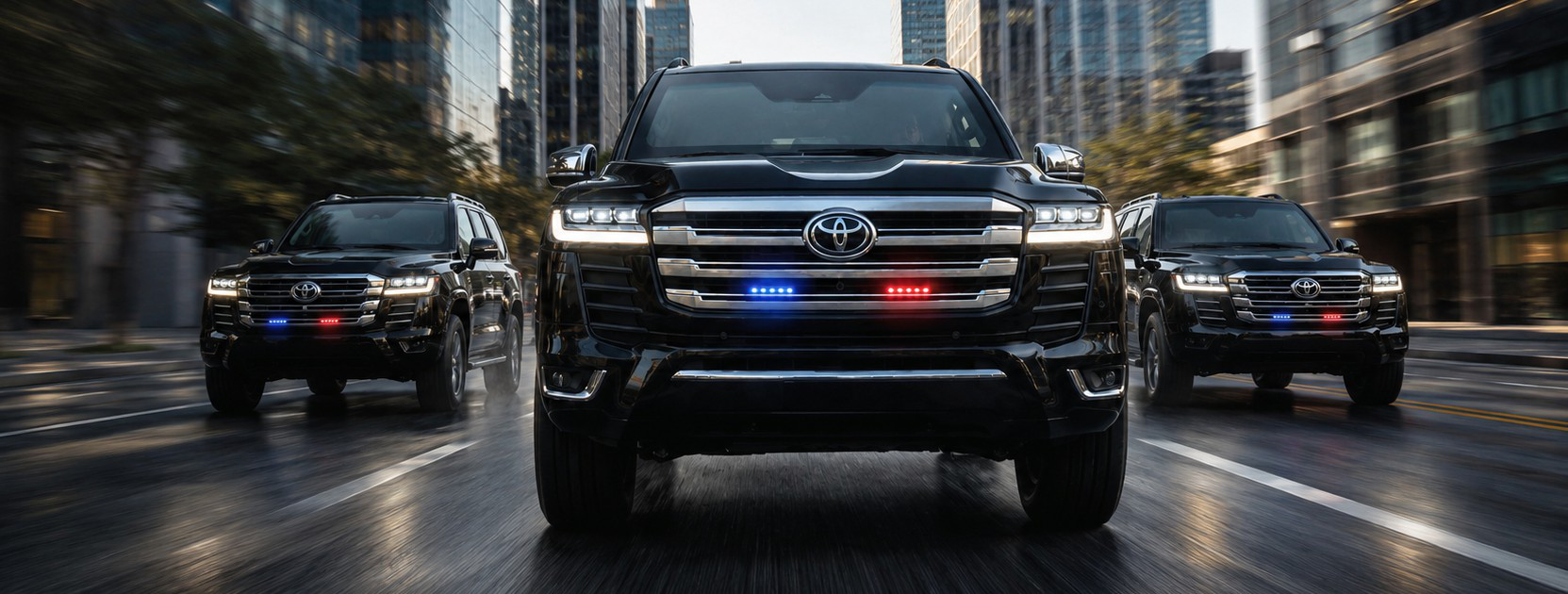

04 / VIP EXECUTIVE PROTECTION
Land Cruiser 300
Discreet protected mobility for government officials, diplomatic movements and executive security.
Explore vehicle ↗Vehicle overview ＋
- Base vehicle
- Toyota Land Cruiser 300
- Engine options
- 3.5 L V6 twin turbo petrol / 3.3 L V6 twin turbo diesel
- Power
- 414 hp petrol / 309 hp diesel
- Transmission
- Automatic
- Seating
- 4
- Doors
- 4 + rear door
- Steering
- Power steering; left or right hand drive
- Brakes
- Upgraded calipers; ventilated front discs and rear solid discs
- Overall length
- 4,950 mm
- Overall width
- 1,980 mm
- Overall height
- 1,950 mm
- Wheelbase
- 2,850 mm
- Tires
- 275/70 R18 LT
- Wheels
- 18 inch alloys
- Run flat system
- Standard; operational up to 50 km
- Protection standard
- VPAM Edition 3 VR7
- Test facility
- Beschussamt Mellrichstadt, Germany
- Validation
- 580+ ballistic rounds; 9 high impact blasts; zero penetration
- Suspension
- Upgraded
- Cargo area
- Large cargo area

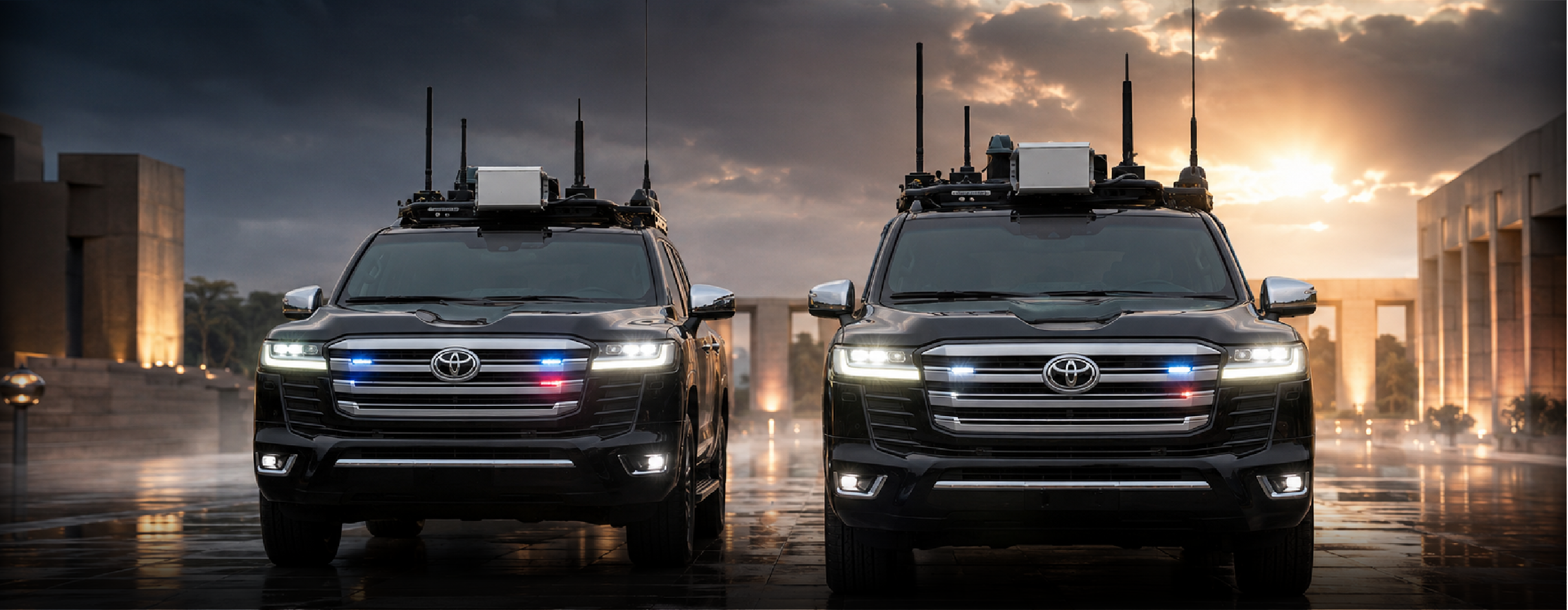

05 / COMMAND & CONTROL
TLC 300 C&C
A mobile command platform bringing protected transport, communications and operator workspace together.
Explore vehicle ↗Vehicle overview ＋
- Base vehicle
- Toyota Land Cruiser 300
- C2 system
- Integrated command platform
- EW system
- AD Guard Hybrid Jammer
- Jamming type
- Hybrid Reactive + Active
- Frequency mod 1
- 25 to 520 MHz / 100W (Reactive/Hybrid)
- Frequency mod 2
- 500 to 2700 MHz / 100W (400 MHz IBW)
- Frequency mod 3
- 2000 to 6000 MHz / 20W (400 MHz IBW)
- Frequency mod 4
- 730 to 960 MHz / 100W
- Frequency mod 5
- 1800 to 2000 MHz / 100W
- Frequency mod 6
- 2110 to 2170 MHz / 100W
- Power consumption
- Up to 1,800W @ 28V DC
- MIL certification
- MIL STD 810 / Full suite
- Ballistic protection
- CEN B6
- Remote control
- Ruggedized wired RCU
- Equipment mounting
- 8 rack U slider chassis with shock mount
- Operating temperature
- −20°C to +49°C
- Storage temperature
- −30°C to +70°C
- Communications
- VHF / UHF / HF / SATCOM ready

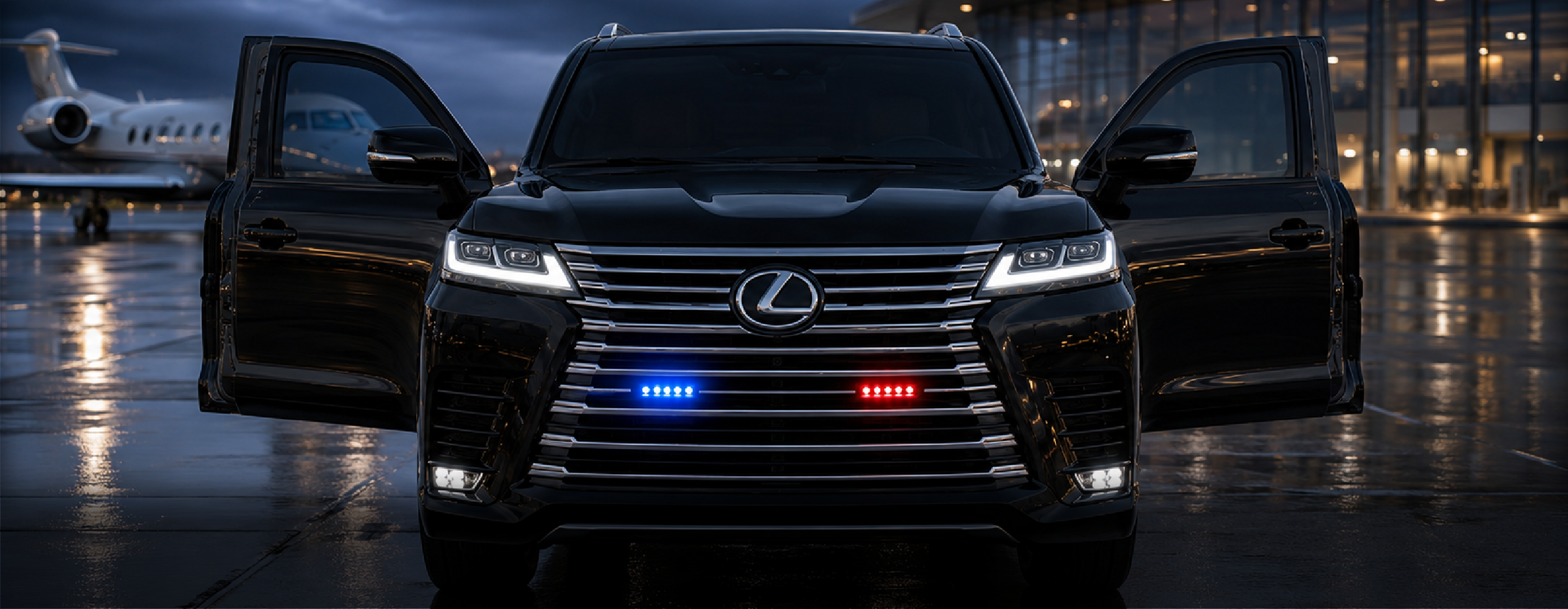

06 / VIP EXECUTIVE PROTECTION
Lexus LX 600
Executive protection combining a discreet exterior with the comfort and refinement of the Lexus LX 600.
Explore vehicle ↗Vehicle overview ＋
- Base vehicle
- Lexus LX 600
- Engine
- 3.5L V6 Twin Turbo (V35A FTS)
- Fuel type
- Petrol
- Horsepower
- 409 HP @ 5,200 rpm (EEC net)
- Torque
- 650 Nm @ 2,000 to 3,600 rpm
- Transmission
- 10 Speed Automatic
- Seating
- 2+2/3
- Doors
- 5 Doors (2+2+1)
- Overall length
- 5,096 mm
- Overall width
- 1,989 mm
- Overall height
- 1,895 mm
- Max speed
- 120 km/h
- Approach angle
- 21°
- Departure angle
- 21°
- Armor level
- CEN B7 (EN 1063)
- Tires
- All Terrain with Run Flat Inserts
- Wheels
- HD Alloy Rims
- Brakes
- Upgraded Brake System
- Steering
- Left Hand Drive
07 / ARMORED TACTICAL PICKUP

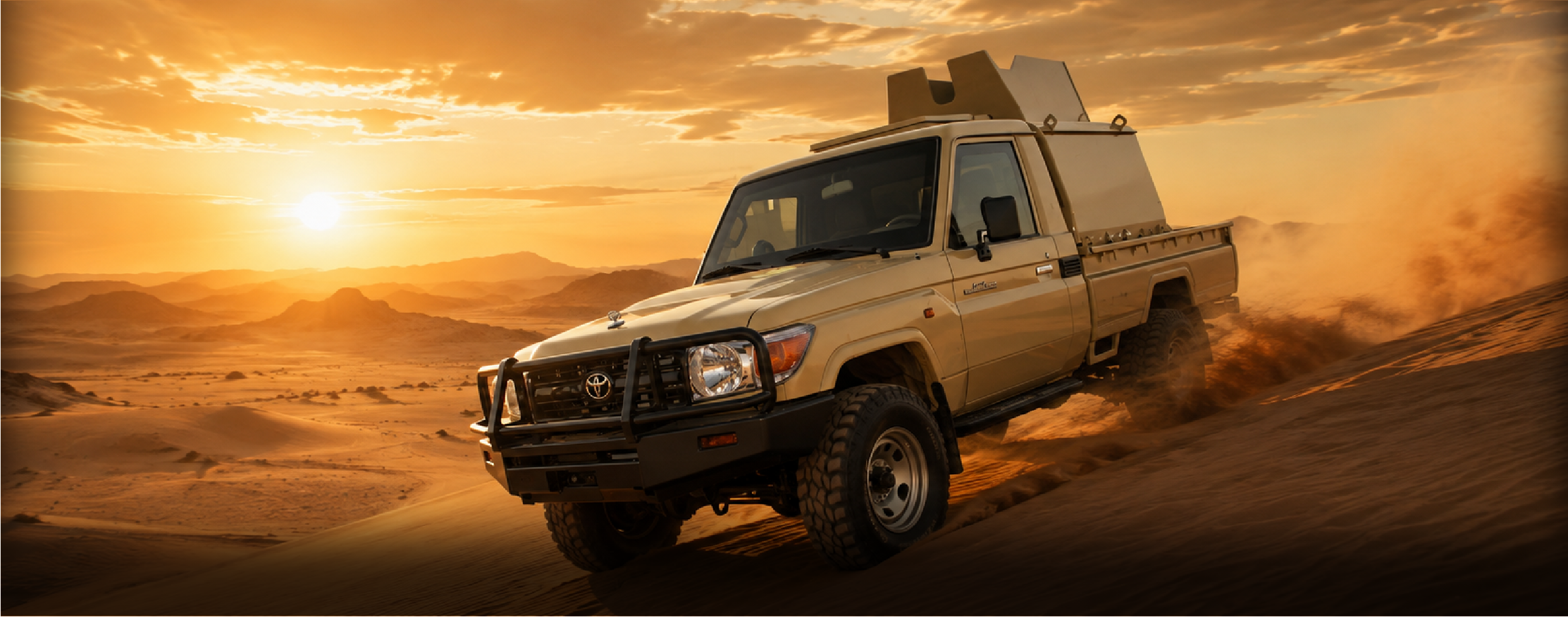

TLC 79 Pickup
A versatile protected pickup for patrol, border security, cargo utility and tactical fleet support.
Explore vehicle ↗Vehicle overview ＋
- Base vehicle
- Toyota Land Cruiser 79 Pickup
- Engine options
- V8 Diesel / 228 hp or 202 hp
- Transmission
- Manual & Automatic Available
- Passenger capacity
- Driver + Up to 4 personnel
- Ballistic protection
- CEN Level B6 (EN 1063)
- Glass protection
- EN 1063 BR6 Ballistic Glass
- Overall width
- Standard OEM Width (mm)
- Tires
- 265/70R16 All Terrain
- Run flat
- Military grade run flat inserts
- Suspension
- Upgraded & reinforced
- Brakes
- Reinforced braking technology
- Configurations
- Troop / Cargo / Recon / Ambulance / C2
08 / ARMORED MEDICAL EVACUATION

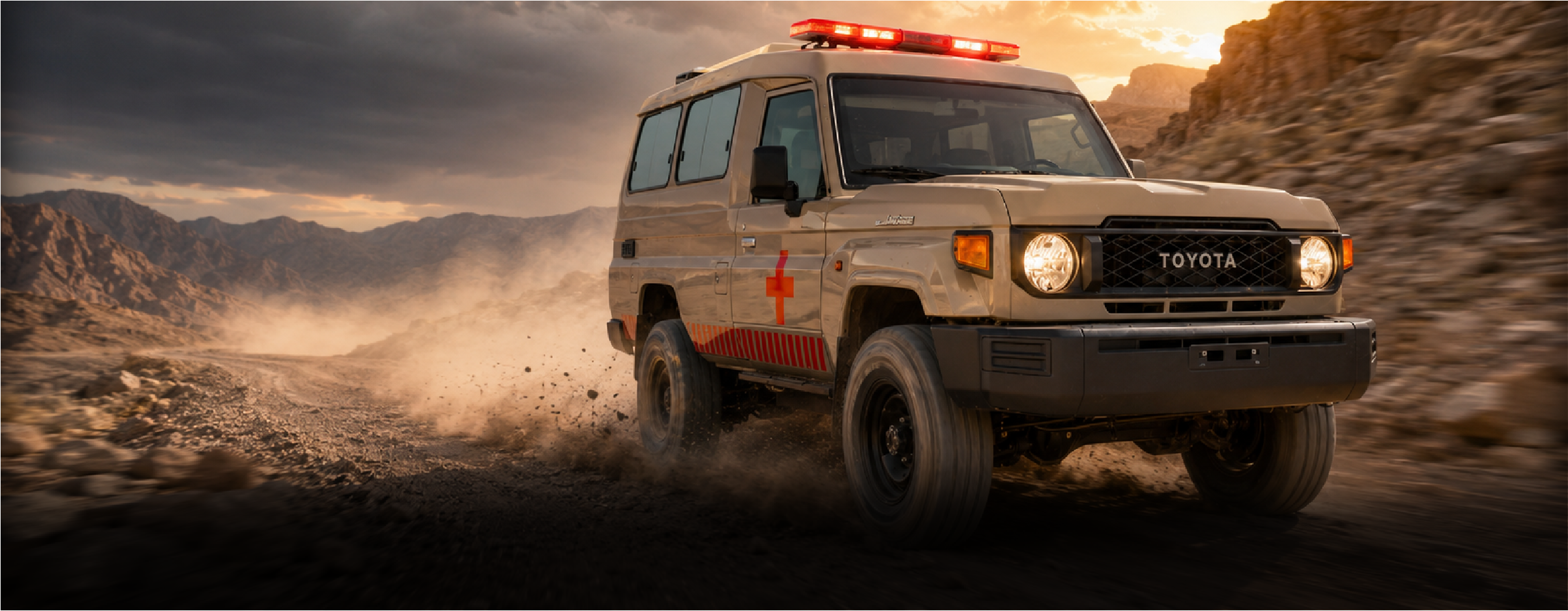

LC 78 Ambulance
Protected medical transport for casualty evacuation, field response and patient care in demanding environments.
Explore vehicle ↗Vehicle overview ＋
- Base vehicle
- Toyota Land Cruiser 78
- Armor standard
- CEN B4 / B6 (EN 1063)
- Medical configuration
- NATO / ICRC Compliant
- Stretcher capacity
- 2 Litter Patients
- Crew
- 2 Medics + Driver
- Oxygen system
- Dual O₂ Cylinder Mounts
- Medical equipment
- Full Trauma Bay Kit
- Drive system
- 4WD / All Terrain
- Climate control
- Medical Bay A/C System
- Communications
- MEDEVAC Radio Integration
- Roof marking
- Armored Medical Cross Marker
- Customization
- Mission configurable interior
Protection standards are not interchangeable; scope, test evidence and the final configuration must be confirmed for each contract. Controlled technical information is shared only with authorized recipients, subject to applicable approvals. Imagery is illustrative.
THE GLADIUS PRINCIPLE
People above all.
Guided by the mission.
Protection without compromise.
04 / COMPLIANCE & RESPONSIBLE TRADERESPONSIBLE DELIVERY OF CONTROLLED CAPABILITIES
Compliance at
every stage.
Responsible government contracting requires regulatory discipline. Gladius Middle East is committed to conducting its armored vehicle programs in accordance with applicable UAE laws, ITAR, EAR and other relevant regulations.
Our commitment covers the complete transaction: the vehicle and its components, the contracting parties, the destination and the intended end use. Required licenses and approvals must be in place before any controlled activity proceeds.
01 U.S. export controls＋
Where applicable, we require compliance with the International Traffic in Arms Regulations (ITAR) and Export Administration Regulations (EAR), including relevant controls on exports, re exports, transfers, technical data, defense services and brokering.
Product classification, licensing and any exemption or exception must be established for the specific activity. This statement does not represent DDTC registration, U.S. government certification or a blanket authorization.
DDTC / ITAR ↗BIS / EAR ↗02 UAE & cross border requirements＋
Applicable UAE defense and security licensing, strategic goods and non proliferation controls, customs requirements, and import, export, re export, transit and transshipment rules must be observed. Transactions are also subject to relevant origin, transit and destination country laws.
Any required Ministry of Defence or other competent authority approval must be obtained for the specific activity.
UAE non proliferation controls ↗03 Sanctions & end user assurance＋
Our commitment includes applicable UN and UAE sanctions, and U.S., EU, UK or other sanctions where legally applicable. Relevant parties, ownership, destinations, intended use and diversion risks must be assessed before proceeding.
End user documentation and onward transfer restrictions must be addressed as required. We do not support prohibited end uses, sanctioned dealings or unauthorized diversion.
OFAC sanctions ↗UN sanctions ↗04 Ethical business & information handling＋
We are committed to applicable anti bribery, anti corruption, anti money laundering, data protection and recordkeeping requirements, including the FCPA and UK Bribery Act where applicable.
Confidential and export controlled information must be shared only with authorized recipients through appropriate channels. Commercial relationships must be transparent and supported by suitable documentation.
05 / CONTACT GLADIUSENQUIRIES · SPECIFICATIONS · QUOTATIONS
Define your requirement.
Start the conversation.
For vehicle enquiries, configuration requirements and quotations,
contact Gladius Middle East.
