Protected personnel movement
A purpose built cabin pairs ballistic protection with a 2A/2B compliant floor. The seating layout accommodates a crew of two and six passengers, with two additional seats available.
Personnel carriers

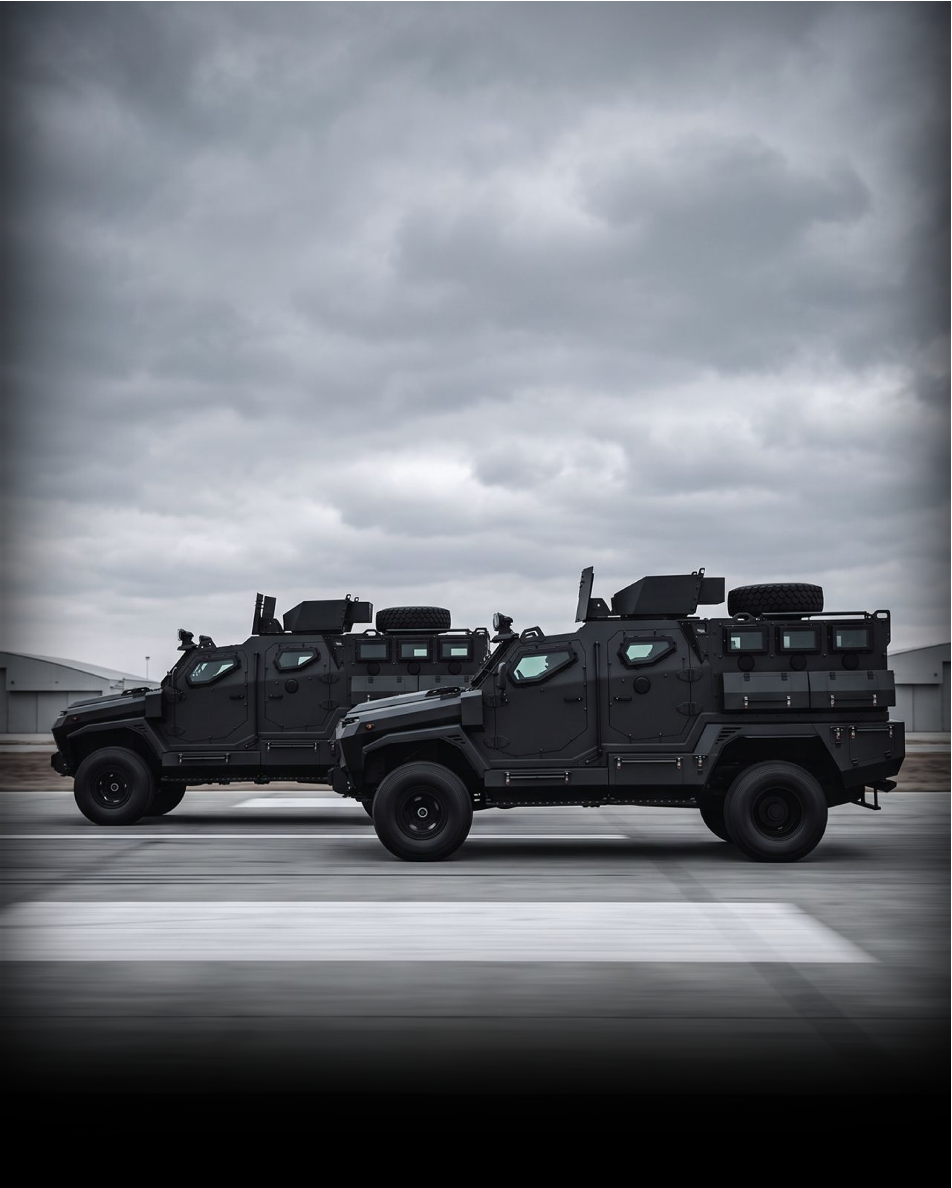

Ford F550 APC
Protected personnel movement for tactical patrol, convoy protection and border security.
MISSION & CONFIGURATION
Mobility and access
Selectable four wheel drive, run flat tires and five doors support personnel movement across demanding terrain.
INSIDE THE PLATFORM
Details that define the build.
PLATFORM DETAILS
Technical specifications.
Protection, mobility and configuration.
- Engine
- 6.7 L V8 diesel
- Power
- 330 hp @ 2,600 rpm
- Torque
- 750 lb ft @ 2,000 rpm
- Transmission
- 10 speed Select Shift Automatic
- Power to weight ratio
- 42.31 hp/ton
- Fuel tank
- 151 L
- Drive system
- Selectable 4×4
- Steering
- Hydraulically assisted
- Front suspension
- Solid twin coil monobeam
- Rear suspension
- Solid axle with leaf springs
- Shock absorbers
- Hydraulic
- Axle ratio
- 4.88
- Wheels
- DBL 20 inch heavy duty alloy
- Tires
- 335/80 R20
- Run flat system
- Standard
- Central tire inflation system
- Optional
- Brakes
- Ventilated discs
- Seating
- 2+6, optional +2
- Doors
- 5
- Turret
- Optional; space for 3
- Overall length
- 6,584 mm
- Overall width
- 2,357 mm
- Overall height
- 2,512 mm
- Wheelbase
- 3,690 mm
- Track
- 2,022 mm
- Ground clearance
- 371 mm
- Curb weight
- 7,800 kg
- Payload capacity
- 1,500 kg
- Combat weight
- 9,300 kg
- Maximum speed
- 100 km/h
- Turning circle
- 12.95 m
- Range
- 645 km
- Gradeability
- 60%
- Side slope
- 30%
- Fording depth
- 0.8 m
- Approach angle
- 38°
- Departure angle
- 30°
- Ballistic protection options
- CEN B6 or STANAG II
- Blast protection
- 2A/2B compliant floor
Protection standards are not interchangeable. Final configuration, options and test evidence are confirmed for each contract. Images illustrate configurations and may show optional equipment.
